13.3. Urban Regeneration

Aus Pattern Language Wiki

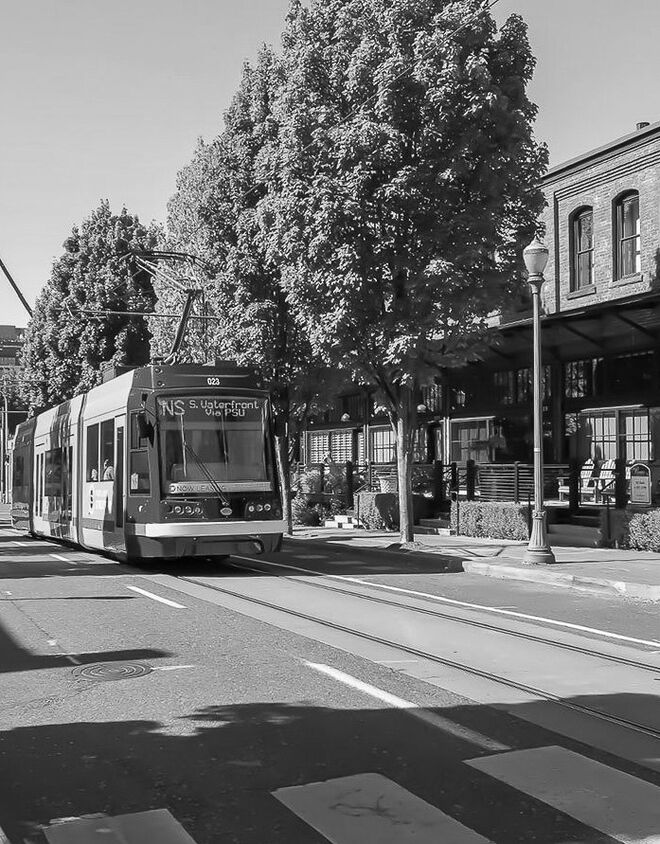

Within the Polycentric Region, the urban cores also represent a valuable asset for careful regeneration.


13 3 01 Urban Regeneration.jpg


Problem-statement: There are many opportunities to re-urbanize existing declining urban areas. But care must be taken to avoid runaway gentrification.


❖ ❖ ❖


Discussion: In her landmark The Death and Life of Great American Cities1, Jane Jacobs described the dangers of gentrification, but she also made an important point. The problem is not when the wealth of a neighborhood increases from poverty to a mix of incomes — a condition she called “unslumming”. The problem arises when the neighborhood tips over from there into higher income, driving out those of more moderate income. She called this “the self-destruction of diversity.” In other words, increasing wealth that increases diversity is good, but increasing wealth that decreases diversity is very bad — perhaps as bad as decreasing wealth that also decreases diversity (e.g. when a neighborhood declines into a slum).


13 3 02 Urban Regeneration.jpg

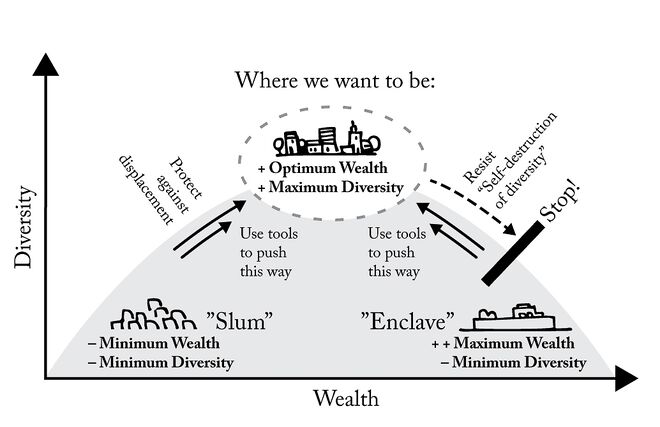

The “Jacobs Curve” shows an optimum point of diversity reflecting a mix of incomes, Anything on either side of this “Goldilocks zone” — either too much poverty, or too much wealth — is bad for the neighborhood.


Jacobs’ point could be illustrated with a graph (previous page), showing a kind of “Goldilocks zone” of maximum diversity. Our goal, not only as planners and designers, but also as policy leaders and citizens, is to implement policies and tools to resist the destruction of diversity on either side of the curve. In existing neighborhoods, our challenge is to restore diversity with policies that can recognize when “enough is enough.”


❖ ❖ ❖


Therefore:

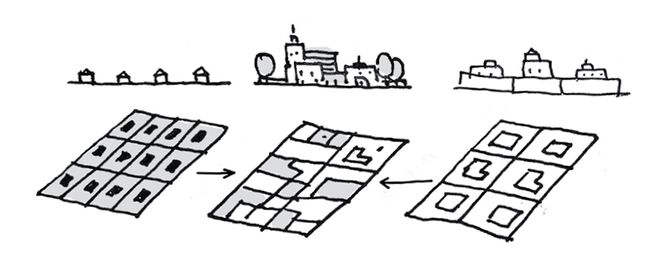

Implement policies to regenerate existing urban areas in decline, while also assuring that these areas do not tip over into gentrification. Do this by providing a range of new housing at a range of prices, and by expanding opportunities in many places at once, so that no one place becomes over-heated.


13 3 03 Urban Regeneration.jpg


Promote a more equitable form of urban development with a Land Value Capture, Integrated Affordability, Multi-Family Infill, and other tools. …




¹ Jacobs, J. (1961). The Death and Life of Great American Cities. New York: Random House.



Mehaffy, M. et al. (2020). URBAN REGENERATION (pattern). In A New Pattern Language for Growing Regions. The Dalles: Sustasis Press. Available at https://pattern-language.wiki/.../Urban_Regeneration
